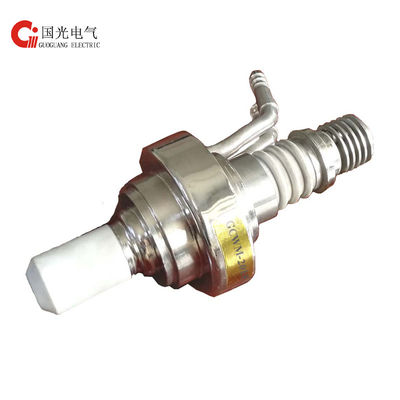

15kw 2450mhz Cw Magnetron , Industrial Magnetron Microwave Oven Parts
| Place of Origin | Sichuan, China (Mainland) |
|---|---|
| Brand Name | GUOGUANG |
| Model Number | GCWM-2015 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Export packing-layer board box/carton box |
| Delivery Time | one month |
| Payment Terms | T/T |
| Supply Ability | 200 Pieces per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Used For | Industrial Microwave Heating, Sintering, Thawing, Microwave Plasma CVD | Type | Microwave Oven Parts |
|---|---|---|---|
| Frequency | 2450MHz | Output Power | 15kW |
| Highlight | microwave power generator,microwave vacuum tube,CW Magnetron 2450MHz Frequency |
||
Product Description
GCWM-2015 15kW/2450MHz CW Magnetron
GCWM-2015 is a directly-heated pure tungsten cathode, non-packaged, CW magnetron of metal ceramic construction. Its magnetic field must be supplied by electromagnet installed outside of magnetron. The cathode pinout and output terminal adopt Forced air, the anode use direct water cooling. Microwave power be output from axial antenna of magnetron, and it can directly launch into WR430 waveguide for microwave head of microwave system equipment.
Main Parameter:
Specification Typical
Frequency: 2420-2480MHz 2450MHz
Output Power: 15 kW
Anode Voltage: Max. 12.6 kV
Anode Current: Max. 1.8 A
Filament Voltage(standby): 7.8V - 9.2V 8.5 V
Filament Current: 47 A
Electromagnet Current: 3.2 A
Cooling:
Anode cooling water flow rate: 8 l/min
Filament terminal air cooling: 0.1 m3/min
Output ceramic window air cooling: 0.3 m3/min
