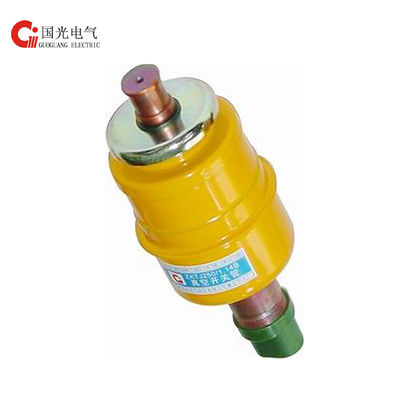

Power Switch Vacuum Interrupter Bottle , Electrical Vcb Circuit Breaker

  • Power Switch Vacuum Interrupter Bottle , Electrical Vcb Circuit Breaker
Place of Origin Sichuan, China (Mainland)
Brand Name GUOGUANG
Model Number ZKTJ-250/1.14
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Export packing-layer board box/carton box
Delivery Time within 10 working days
Payment Terms T/T
Supply Ability 200 Pieces per month
Product Details
Rated Voltage 1.14kV Rated Current 250A
Rated Frequency 50/60Hz Net Weight 1 Kg
Shelf Life 10 Years
High Light

vacuum interrupter tester

,

vacuum fault interrupter
Leave a Message
Product Description

                                                                  Parameter



No. MAIN TECHNICAL DATA Unit
1 Rated Voltage kV 1.14
2 Lightning Impulse Withstand Voltage (Peak) kV
3 Short-time (1min) Power-frequency Withstand Voltage kV 5
4 Rated Frequency Hz 50/60
5 Rated Current A 250
6 Rated Short-time Withstand Current kA 3.5
7 Rated duration of Short-circuit s 1
8 Rated Breaking Current A 2500
9 Limiting Breaking Current kA 4.5
10 Rated Making Current kA 3
11 Rated Operating Frequency AC-3 Operations/h
AC-4
12 Short-time Operating Frequency Operations/h 3000
13 Utilization Category AC
14 Electrical Endurance AC-3 Operations 5*106
AC-4 8*104
15 Mechanical Endurance Operations 5*106
16 Clearance Between Open Contacts mm 1.2~1.5
17 Contact Closing Force Due to Bellows and Atmosphere N 40~68
18 Counter force of Contacts at Full Stroke N 50~78
19 Circuit Resistance at Min. Rated Contact Force μΩ
20 Contact Limit Erosion mm 1
21 Mass of Moving Parts kg 0.23
22 Internal Gas Pressure Pa ≤1.33*10-3
23 Shelf Life Year 10







                                         Power Switch Vacuum Interrupter Bottle , Electrical Vcb Circuit Breaker 0
